Quartz pendulum module is the key component of quartz flexible accelerometer to measure acceleration by sensing inertial force. It is made of an integral quartz pendulum piece, with a force generator coil glued on both sides of the center of the swing piece and a flexible head as the swing axis, forming a moving part of the force generator. Its lead is led out by the gold plated lead of the quartz pendulum piece through the quartz flexible head. The coil of force generator is composed of aluminum alloy skeleton and enamelled wire wound in the skeleton.
Semua produk
-
Kaca Kuarsa Optik
-
Mesin Kaca Kuarsa
-
Tabung Kaca Kuarsa
-
Tabung Kapiler Kuarsa
-
Tabung Kaca Borosilikat
-
Batang Kaca Kuarsa
-
Suku Cadang Laser
-
Target Sputtering Silikon Dioksida
-
Aparat Kuarsa
-
Piring Kaca Kuarsa
-
Bagian Kaca Kustom
-
Bagian Keramik Kustom
-
Peralatan Manufaktur Optik
-
Mesin Pembuat Penutup Kaca Seluler
-
Alat Ukur Optik
-
Kristal Optik

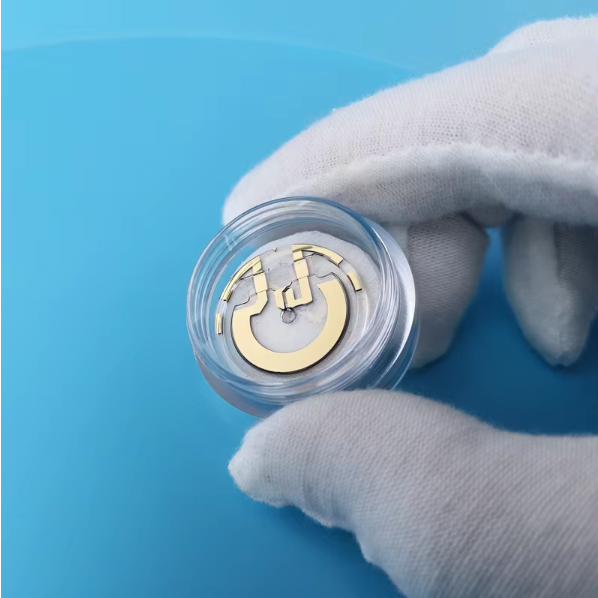

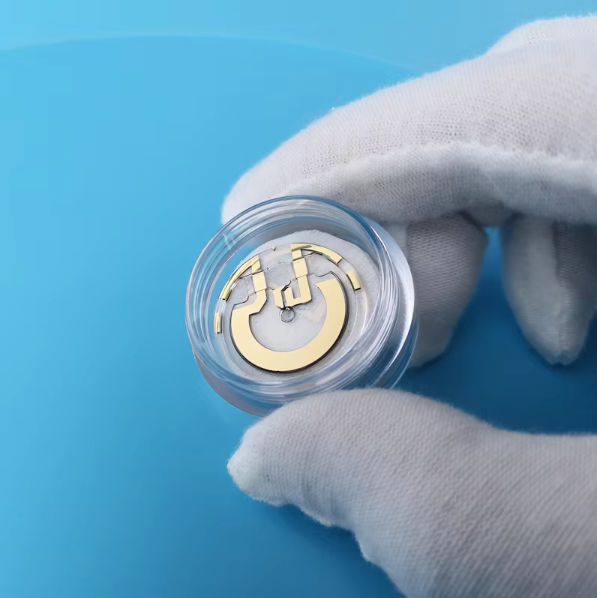

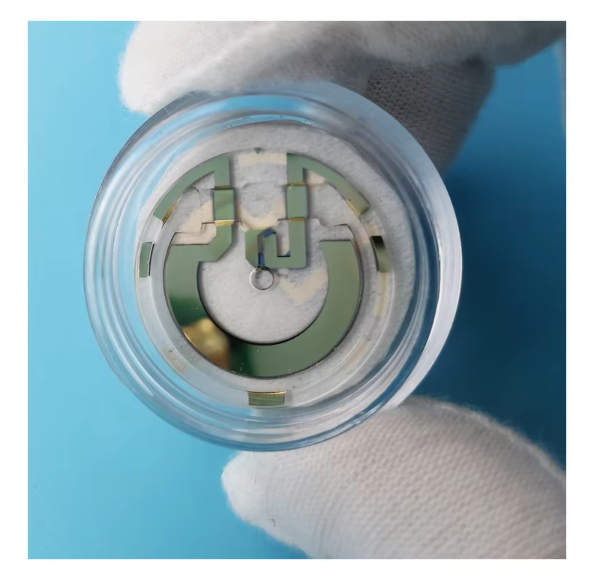

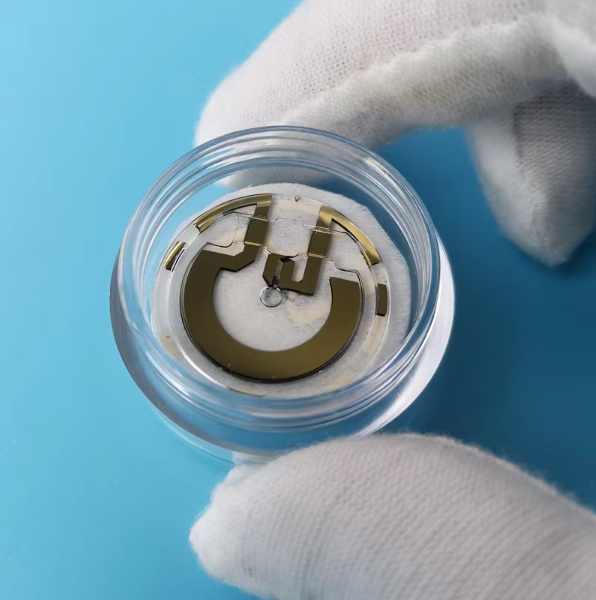

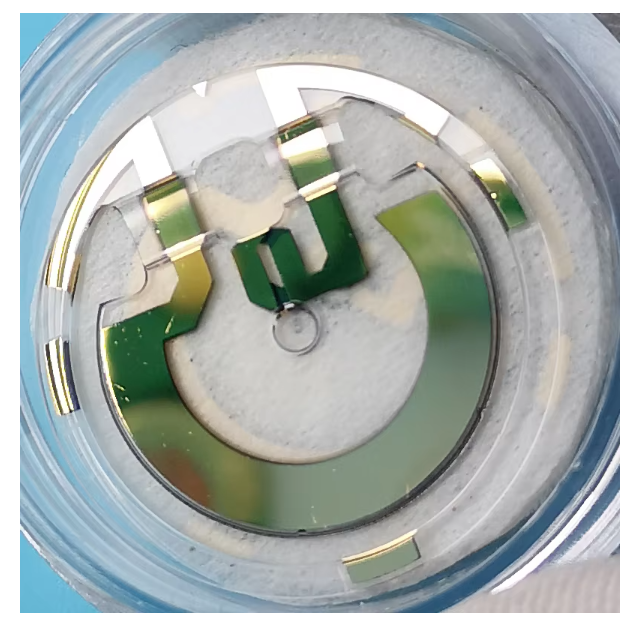

Premium Quality Flexible Beam Quartz Pendulum Gold Coated for High Reflection
| Tempat asal | Shandong, Cina |
|---|---|
| Nama merek | ZKTD |
| Sertifikasi | ISO 9001:2008, Rohs |
| Nomor model | ZKTD-PO12 |
| Kuantitas min Order | 5 pcs |
| Harga | USD 48/Pieces |
| Kemasan rincian | Karton, kotak kayu, kapas mutiara. |
| Waktu pengiriman | 14 hari kerja |
| Syarat-syarat pembayaran | L/c, t/t |
| Menyediakan kemampuan | 10000 buah/bulan |
Hubungi saya untuk sampel gratis dan kupon.
ada apa:0086 18588475571
Wechat wechat: 0086 18588475571
Skype: sales10@aixton.com
Jika Anda memiliki masalah, kami menyediakan bantuan online 24 jam.
xDetail produk
| Menyoroti | flexible beam quartz pendulum,gold coated quartz pendulum,high reflection quartz glass |
||
|---|---|---|---|
Anda dapat mencentang produk yang Anda butuhkan dan berkomunikasi dengan kami di papan pesan.
Deskripsi Produk
Product Description
Specification
| Item | Value |
| Brand Name | ZKTD |
| Application | Sensor, Inertial Navigation, instrument |
| Shape | Round |
| Chemical Composition | 99.999% fused silica |
| Product Name | Flexible Beam Quartz Pendulum |
| Color | Clear Transparent |
| Parallelism | <2um |
| Flatness | <0.6um |
| Surface Roughness Ra | <1nm |
| Thickness Error Of Flexible Beam | <1um |
Flexible Beam Quartz Pendulum For Inertial Navigation
Company Profile
Yantai ZK Optics Co., Ltd., is a high-tech comprehensive glass processing enterprise integrating R&D, production and sales. The
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
product sales have been spread all over the world, and are trusted by users in Asia, Europe, the United states, South Korea and
India. It has established a high-quality product image and brand in the field of glass deep processing.
Certificate
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
