2x0.25x12mm Flared End Quartz Glass Tube For Optical Fiber Protection

Tempat asal	Cina
Nomor model	QT-FT-2x0.25x12

Detail produk

Bahan	Silika Lebur Kemurnian Tinggi (SiO2 > 99,99%)	Diameter Luar	2mm
Ketebalan Dinding	0,25mm	Panjang	12mm
Suhu operasi maks	2 antena eksternal	Desain Tabung	Mulut Lonceng Menyala (Salah Satu Ujungnya Diperbesar)
Dinding bagian dalam	Halus, Lubang Presisi, Ujung Bebas Duri	Ketahanan Kimia	HF, Asam Kuat & Alkali, Pelarut Organik
Transmisi	Rentang UV-Terlihat	Kemurnian	Tidak Ada Presipitasi Ion Logam
Aplikasi	Selongsong Konektor Serat, Perlindungan Sambungan Fusi, Manajemen Serat Multi-Inti
Menyoroti	flared end quartz glass tube , 2x0.25x12mm quartz glass tube , Optical fiber protection quartz glass tube

Tinggalkan pesan

Deskripsi Produk

Product Overview

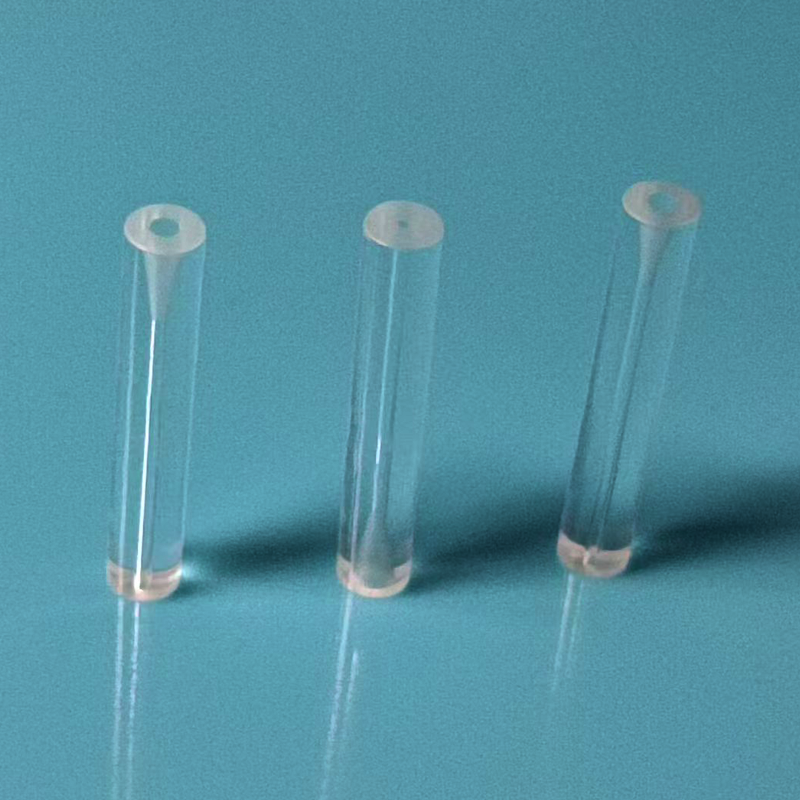

The Quartz Flared Fiber Protection Tube (OD2mm x Wall 0.25mm x Length 12mm) is a precision-engineered micro component designed for bare fiber protection in optical communication devices. Manufactured from high-purity fused silica (SiO2 > 99.99%), it features a unique bell-mouth flared design that combines smooth fiber insertion with secure locking — protecting delicate bare fibers from mechanical damage, thermal stress, and environmental contamination.

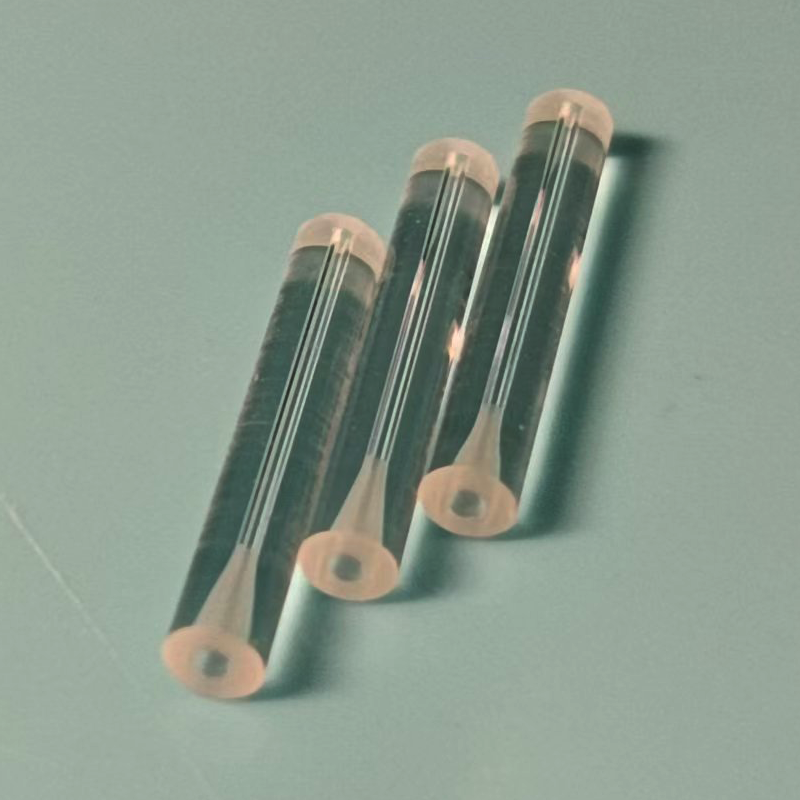

Core Design: Flared Bell-Mouth Structure

Feature	Benefit
Flared Inlet (Large End)	Guides fiber threading smoothly, eliminating insertion resistance and preventing coating abrasion
Narrow Locking End (Small End)	Secures fiber in position, preventing pull-out and bending-induced core fracture
Burr-Free Precision Ends	Eliminates risk of fiber coating cut from sharp tube edges

Key Features

1100°C High Temperature Resistance: Replaces conventional heat-shrinkable sleeves under extreme thermal conditions, ideal for industrial base stations and power substations
Strong Acid & Alkali Resistance: Outstanding chemical durability against corrosive environments, ensuring long-term protection in harsh conditions
High Purity Without Metal Precipitation: SiO2 > 99.99% with zero ion leaching, preserving signal integrity in precision optical paths
UV Transmittance: Excellent optical clarity for UV-curable adhesive curing and visual fiber inspection
Precision Bore & Smooth Inner Wall: Tight diameter tolerance with low-friction inner surface for consistent fiber positioning

Applications

Application	Description
Fiber Connector & Pigtail Sleeves	Pre-installed inside FC/SC/LC connectors to protect fibers against pull stress and bending breakage during plugging/unplugging; ideal for optical modules and transceivers
Fusion Splice Joint Protection	Sealed tube encapsulates fusion splices to isolate damage from high heat, grease and moisture; widely used in high-temperature industrial base stations and power substations
Multi-Core Bundled Fiber Management	Flared opening gathers multiple bare fibers for neat cable routing; applied in optical splitters and fiber distribution boxes

Competitive Advantages

vs. Heat-Shrinkable Sleeves: Withstands 1100°C vs ~200°C limit; transparent quartz enables visual inspection without sleeve removal; zero outgassing in vacuum or high-temperature environments

vs. Ceramic Ferrules: Lighter weight with comparable hardness; UV-transparent for adhesive curing; precision bore with smoother inner wall finish; more cost-effective for high-volume deployment

vs. Plastic Protection Tubes: Superior thermal stability with no softening or deformation; excellent organic solvent resistance; long-term dimensional stability without yellowing or embrittlement

Specifications

Parameter	Value
Material	High Purity Fused Silica (SiO2 > 99.99%)
Outer Diameter	2mm
Wall Thickness	0.25mm
Length	12mm
Max Operating Temperature	1100°C
Design Type	Flared Bell-Mouth (One End Enlarged)
Chemical Resistance	HF, Strong Acid & Alkali, Organic Solvents
Inner Wall	Smooth, Precision Bore, Burr-Free Ends
Purity	No Metal Ion Precipitation
